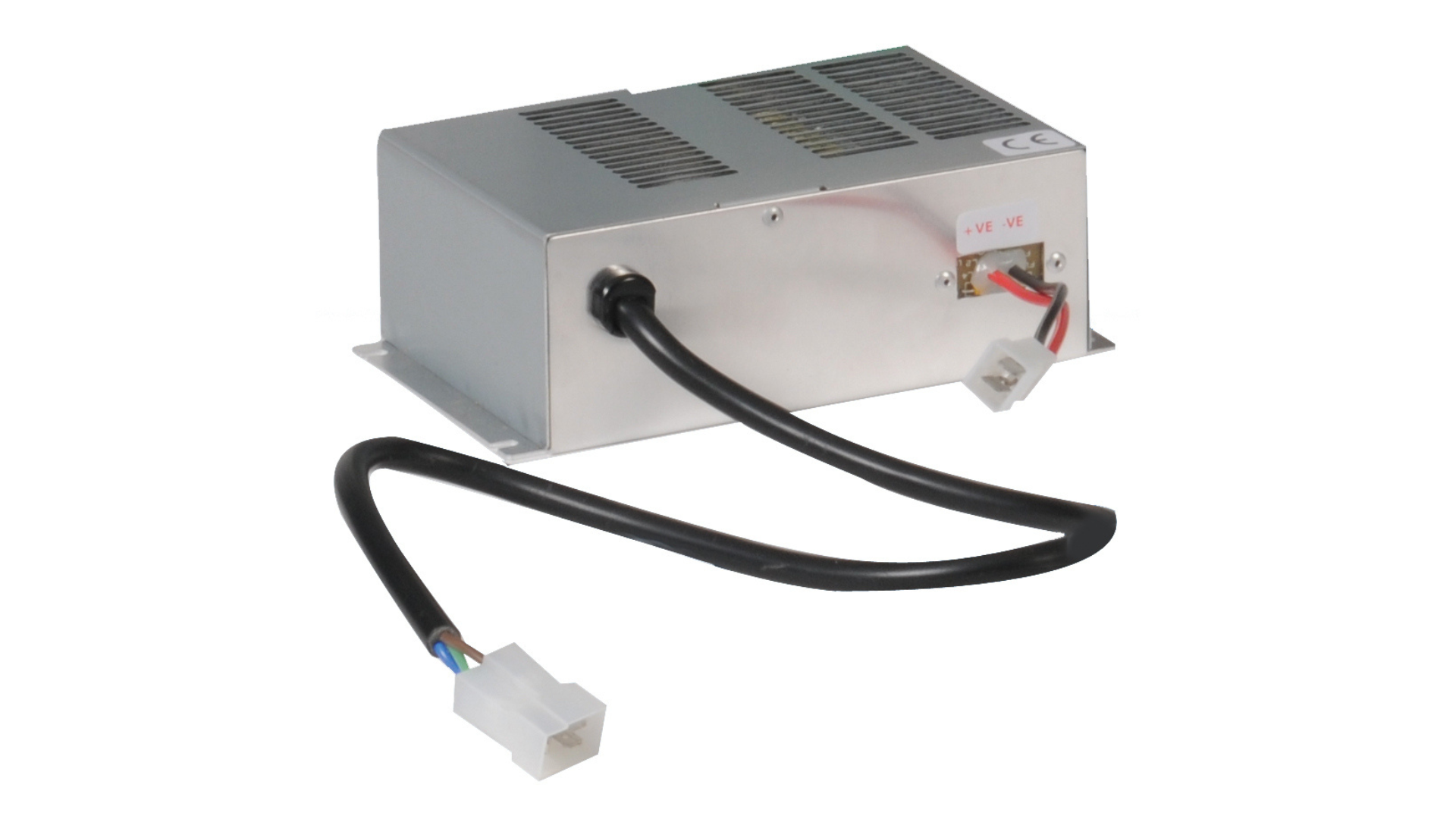

Caravan 10A Power Unit Repair Specialists

Caravan 10A power supply and charging units are used to provide low-voltage power and maintain the leisure battery in many caravans and motorhomes.

As these units age, transformers, rectifiers, capacitors, power semiconductors, connectors and other electronic components can deteriorate and cause charging or power supply problems.

At Britfix Repairs, we specialise in component-level repair of caravan chargers and power supply units. Wherever practical, we diagnose and repair the original electronics rather than replacing the complete power unit.

Common Caravan 10A Power Unit Faults

• Power unit completely dead
• No charging output
• Leisure battery not charging
• Low output voltage
• Unstable or fluctuating voltage
• Battery voltage dropping under load
• Blown mains or output fuse
• Transformer overheating or humming
• Rectifier or diode failure
• Burnt or overheating components
• Intermittent power or charging
• Damaged PCB tracks or connectors

Transformer Faults

The transformer is an important part of many traditional caravan power supply and battery charging units. Transformer-related faults can result in no output, reduced voltage, excessive heat, unusual humming or complete failure of the power unit.

Before assuming that the transformer itself has failed, we inspect the surrounding circuitry because rectifiers, connections, thermal protection devices or excessive load on the secondary circuit can produce similar symptoms.

The transformer and associated circuitry are tested to determine the actual cause of the fault before repair work is carried out.

No Charging Output

A caravan power unit that has mains power but produces no useful charging output may have a fault in the transformer, rectifier, fuse, wiring, output stage or associated electronic circuitry.

We test the relevant sections of the power supply to identify the failed component rather than replacing parts unnecessarily.

Low or Unstable Output Voltage

A power supply may appear to work but produce insufficient voltage to charge the leisure battery correctly. In some cases the voltage may measure normally without a load but fall when the battery or caravan electrical system is connected.

Possible causes can include deteriorated capacitors, rectifier problems, poor electrical connections, damaged solder joints, overheating components or faults elsewhere in the power supply.

Rectifier and Diode Repairs

Rectifier components convert the transformer's AC output into the DC supply required by the caravan electrical system and leisure battery.

Failed rectifier diodes or bridge rectifiers can cause low output, excessive ripple, blown fuses, overheating or complete loss of charging voltage.

Where suitable replacement components are available, failed rectifier components can be replaced and the power unit tested before being returned to service.

Blown Fuse and Short Circuit Faults

A fuse that repeatedly blows usually indicates an underlying electrical fault. Possible causes include shorted rectifiers, damaged power components, wiring faults or problems within the transformer or associated circuitry.

Repeatedly replacing the fuse without locating the cause can result in further damage. A unit that continues to blow fuses should be inspected before further power is applied.

Overheating and Burnt Components

Caravan power units can operate for long periods and may experience significant heat, particularly when supplying electrical equipment while charging the leisure battery.

Ageing components, poor connections and excessive electrical resistance can lead to discoloured circuit boards, burnt connectors, damaged resistors or other heat-related failures.

Where repair is practical, damaged components and affected circuit board areas are repaired before electrical testing is carried out.

Component-Level Caravan PSU Repairs

We repair caravan 10A power supply units at component level where practical. This can avoid replacing the complete unit when the original power supply can be economically repaired.

Depending on the fault and condition of the unit, repair work may include:

• Transformer fault diagnosis
• Rectifier and diode replacement
• Capacitor replacement
• Power semiconductor replacement
• Resistor and protection component replacement
• Repair of damaged PCB tracks and solder pads
• Repair of dry or cracked solder joints
• Connector and wiring repairs
• Fuse and protection circuit diagnosis
• Output voltage testing after repair

Why Repair the Original Caravan Power Unit?

Many older caravan power units are designed specifically for the original electrical installation. Finding a direct replacement with the same dimensions, connectors and electrical characteristics can sometimes be difficult.

Repairing the original unit can avoid unnecessary alterations to the caravan wiring and allows the existing power supply installation to remain in service.

Inspection Before Repair

Every caravan power unit is inspected before repair work begins. Repairability depends on the condition of the transformer and circuit board, the extent of previous damage, availability of suitable replacement components and any previous repair attempts.

Please avoid repeatedly powering a unit that is blowing fuses, overheating, producing smoke or giving off a burning smell, as this can cause additional damage.

UK Postal Repair Service

Customers throughout the UK can send their caravan 10A power unit or PSU to Britfix Repairs for inspection and repair.

Please contact us before posting your power unit. Include any manufacturer or model information shown on the unit, together with a description of the fault and details of any previous repair work.

We will then provide packing and delivery instructions.
