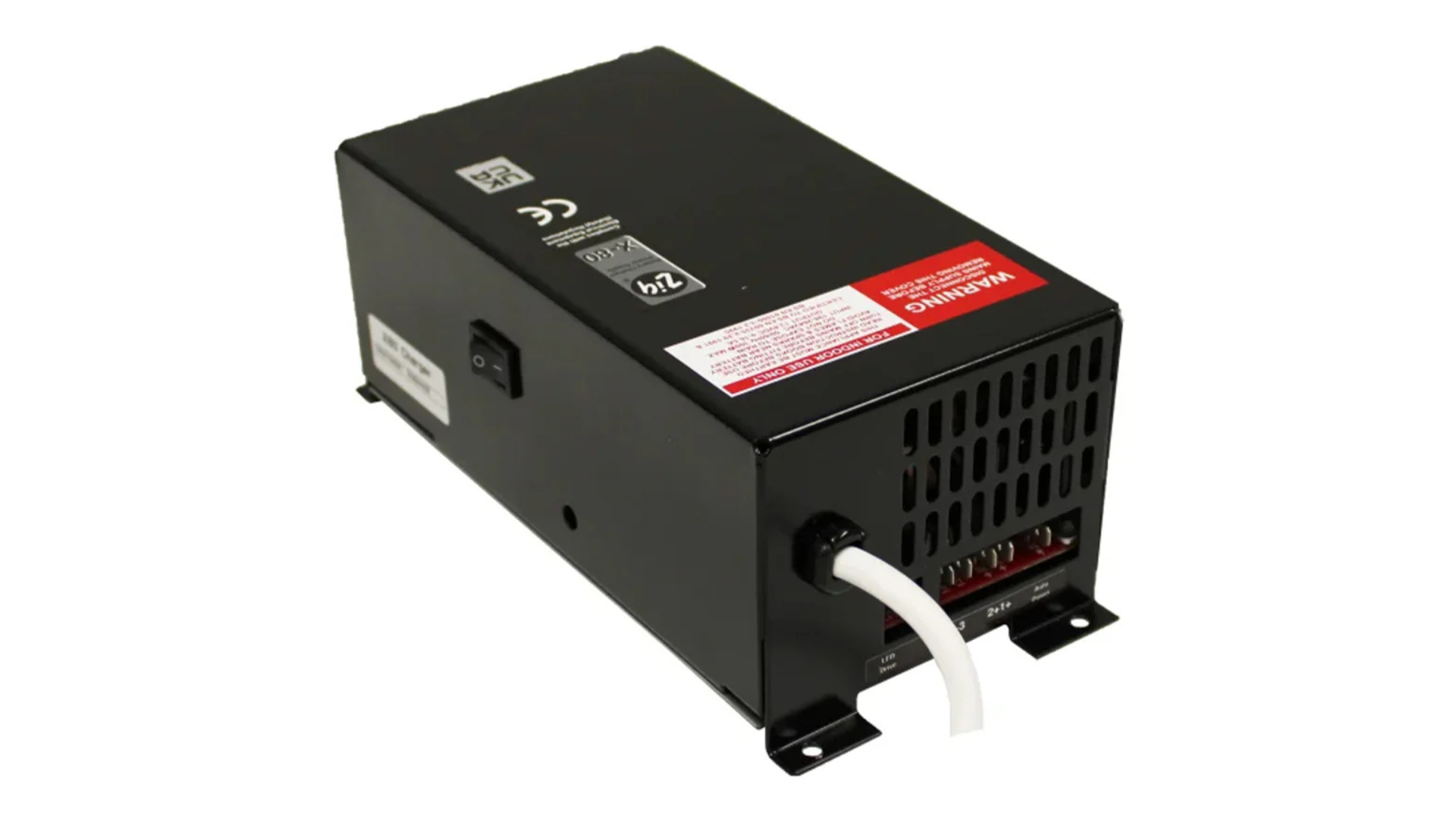

Zig Caravan Charger Repair Specialists

Zig caravan chargers and power supply units have been used in many caravans, motorhomes and leisure vehicles for battery charging and low-voltage power distribution.

As these units age, transformers, rectifiers, capacitors, power semiconductors, solder joints, connectors and other electronic components can deteriorate and cause charging or power supply faults.

At Britfix Repairs, we specialise in component-level repair of caravan charging equipment. Wherever practical, we diagnose and repair the original Zig charger rather than replacing the complete unit.

Common Zig Charger Faults

• Charger completely dead
• No charging output
• Leisure battery not charging
• Low charging voltage
• Unstable or fluctuating voltage
• Battery voltage dropping under load
• Blown mains or output fuse
• Transformer humming or overheating
• Rectifier or diode failure
• Intermittent charging
• Burnt components or damaged PCB tracks
• Faulty connectors or poor solder joints

No Charging Output

A Zig charger that powers up but produces no useful charging voltage may have a fault within the mains input section, transformer, rectifier, output circuitry or associated electronic components.

We test the relevant sections of the charger to locate the underlying fault rather than replacing parts unnecessarily.

Low or Unstable Charging Voltage

A Zig charger may appear to be operating but produce insufficient voltage to charge the leisure battery correctly.

In some cases the voltage may appear normal without a load but fall when the battery or caravan electrical system is connected. This can indicate deteriorated capacitors, faulty rectifiers, poor solder joints, damaged connections or other internal faults.

Transformer Faults

Many Zig charging systems use transformer-based power supplies. Transformer-related faults can result in no output, excessive heat, unusual humming, reduced voltage or complete failure of the unit.

Before assuming the transformer itself has failed, we inspect the surrounding circuitry because rectifiers, protection devices, connectors or excessive secondary load can cause similar symptoms.

Rectifier and Diode Repairs

Rectifier components convert the transformer's AC output into the DC supply used by the caravan electrical system and leisure battery.

Failed diodes or bridge rectifiers can cause low charging voltage, blown fuses, overheating, excessive ripple or complete loss of output.

Where suitable replacement parts are available, failed rectifier components can be replaced and the charger tested after repair.

Blown Fuse or Short Circuit Faults

A fuse that repeatedly blows usually indicates an underlying electrical problem. Possible causes include failed rectifiers, shorted power components, damaged wiring or faults elsewhere in the power supply circuitry.

Repeatedly replacing the fuse without locating the cause can result in further damage. A charger that continues to blow fuses should be inspected before further power is applied.

Overheating and Burnt Components

Caravan chargers can operate for extended periods and may experience heat-related deterioration over time.

Burnt resistors, discoloured circuit boards, damaged connectors, cracked solder joints and failed power components can all contribute to charging faults.

Where practical, damaged components and affected circuit board areas are repaired before the unit is electrically tested.

Component-Level Zig Charger Repairs

We repair Zig caravan chargers at component level where practical. This can avoid replacing the complete charging unit when the original equipment can be economically repaired.

Depending on the condition and fault, repair work may include:

• Transformer fault diagnosis
• Rectifier and diode replacement
• Capacitor replacement
• Power semiconductor replacement
• Resistor and protection component replacement
• Repair of damaged PCB tracks and solder pads
• Repair of dry or cracked solder joints
• Connector and wiring repairs
• Fuse and protection circuit diagnosis
• Charging and output voltage testing after repair

Why Repair the Original Zig Charger?

Many older Zig chargers are designed specifically for the original caravan electrical installation.

Finding a replacement with the same dimensions, connectors and electrical characteristics can sometimes be difficult. Repairing the original unit can avoid unnecessary alterations to the caravan wiring and power distribution system.

Inspection Before Repair

Every Zig charger is inspected before repair work begins. Repairability depends on the condition of the circuit board, transformer, connectors and other components, together with the extent of any previous damage or repair attempts.

Please avoid repeatedly powering a unit that is blowing fuses, overheating, producing smoke or giving off a burning smell, as this may cause additional damage.

UK Postal Zig Charger Repair Service

Customers throughout the UK can send their Zig caravan charger or power supply unit to Britfix Repairs for inspection and repair.

Please contact us before posting the unit. Include any Zig model information shown on the charger, a description of the fault, the symptoms you have observed and details of any previous repair work.

We will then provide packing and delivery instructions.
